RAVEN
Interior Surface Lights

Raven is a versatile luminaire family with a simple linear form and diffused illumination for corridors, vanity lighting, patient room headwalls, exterior facades, and more.

The Raven family consists of 10 indoor models, 10 outdoor models in 18", 2', 3', 4', and 5' lengths, with a nominal 4" width and depth each. Included are 10 trim bar models and 10 new trim-free models.

  • Integral driver
  • Ceiling or wall mount (horizontal or vertical orientation)
  • Mounts to 2 X 4 electrical junction box (by others) with provided hardware. Requires auxiliary mounting fasteners (provided). Orient junction box to match fixture’s linear dimension (horizontal or vertical)
  • Optional express 10 day shipping (XPS)
  • BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Baja Beige
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • 2700k–5000k color temperatures
  • Increase fixture length up to 8’ (indoor only)
  • Add or change trim bar placement
  • RGB or RGBW (Remote Driver/Controller)
Where to Buy? Contact a Sales Representative or Request a Quote

Product Specifications & Documents

A luminous surface-mounted luminaire with a curved linear diffuser body and trim accents
NULL NULL

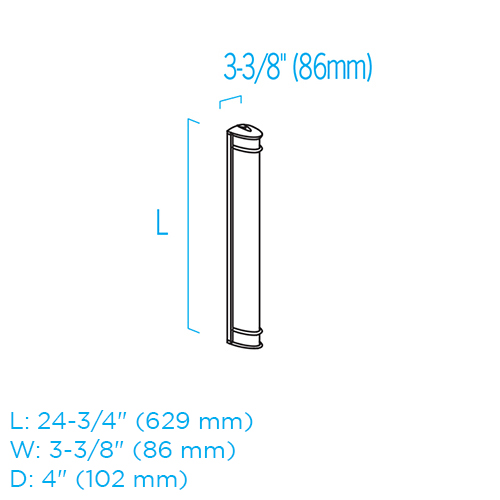

CV1800

24", Indoor, with accent

  • L
  • W
  • D
  • 24-3/4" (629 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 800
    H: 1400
  • Watts
  • L: 7
    H: 13
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body and trim accents
NULL NULL

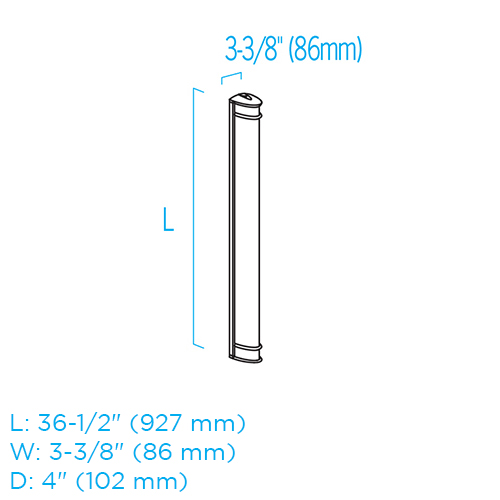

CV1802

36", Indoor, with accent

  • L
  • W
  • D
  • 36-1/2" (927 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 1900-2000
    H: 2800
  • Watts
  • L: 17
    H: 26
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body and trim accents
NULL NULL

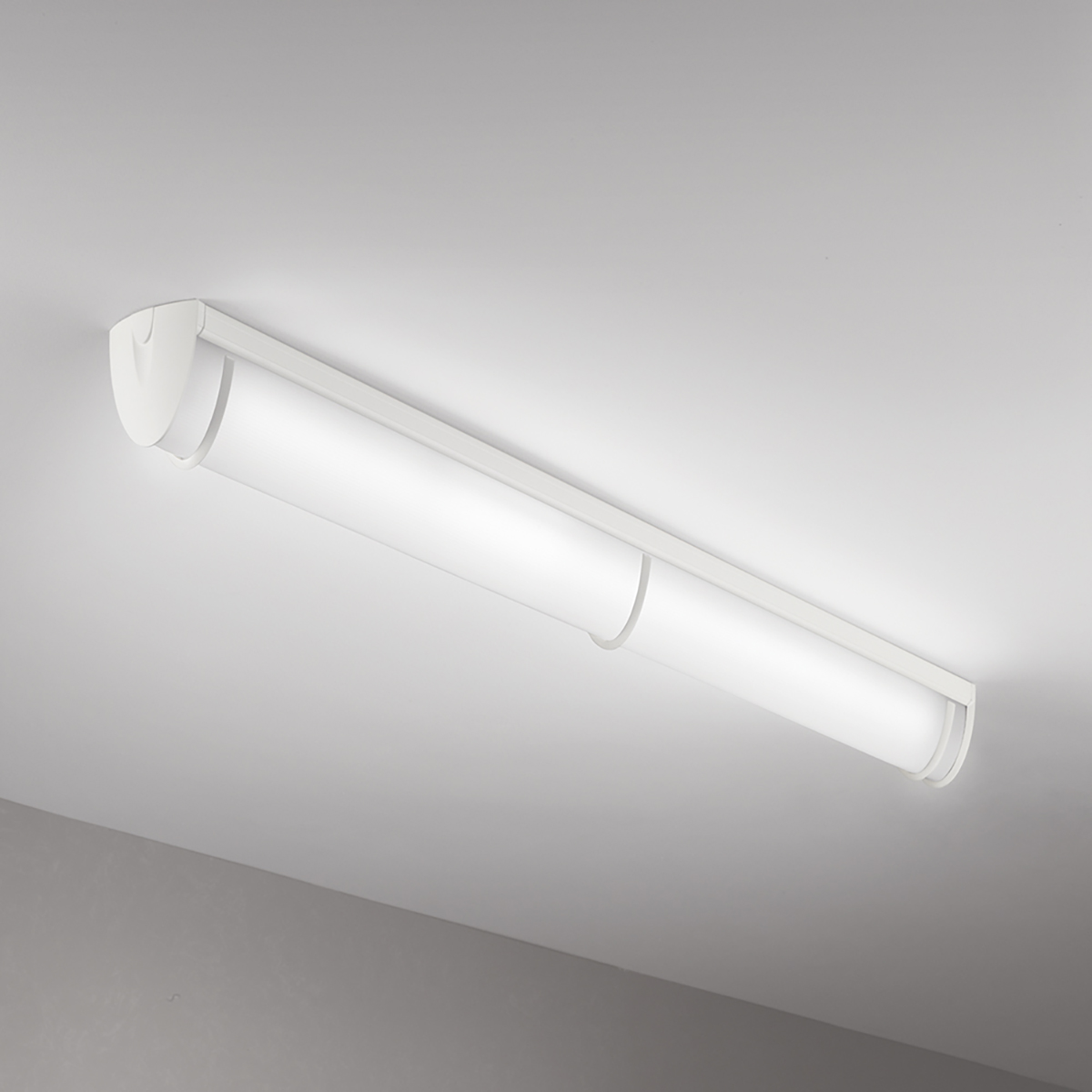

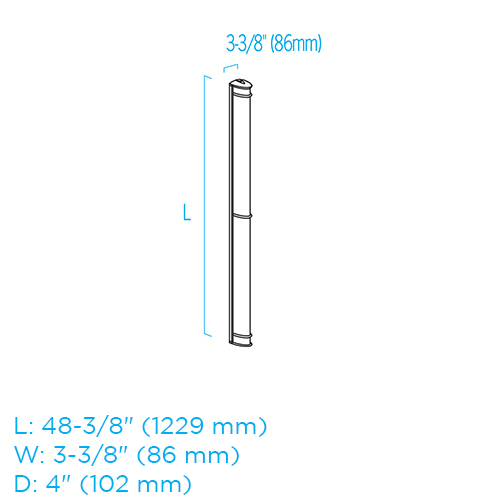

CV1804

48", Indoor, with accent

  • L
  • W
  • D
  • 48-3/8" (1229 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2200-2300
    H: 3300-3400
  • Watts
  • L: 19
    H: 29
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous ceiling or surface-mounted luminaire with a curved linear diffuser body and trim accents
NULL NULL

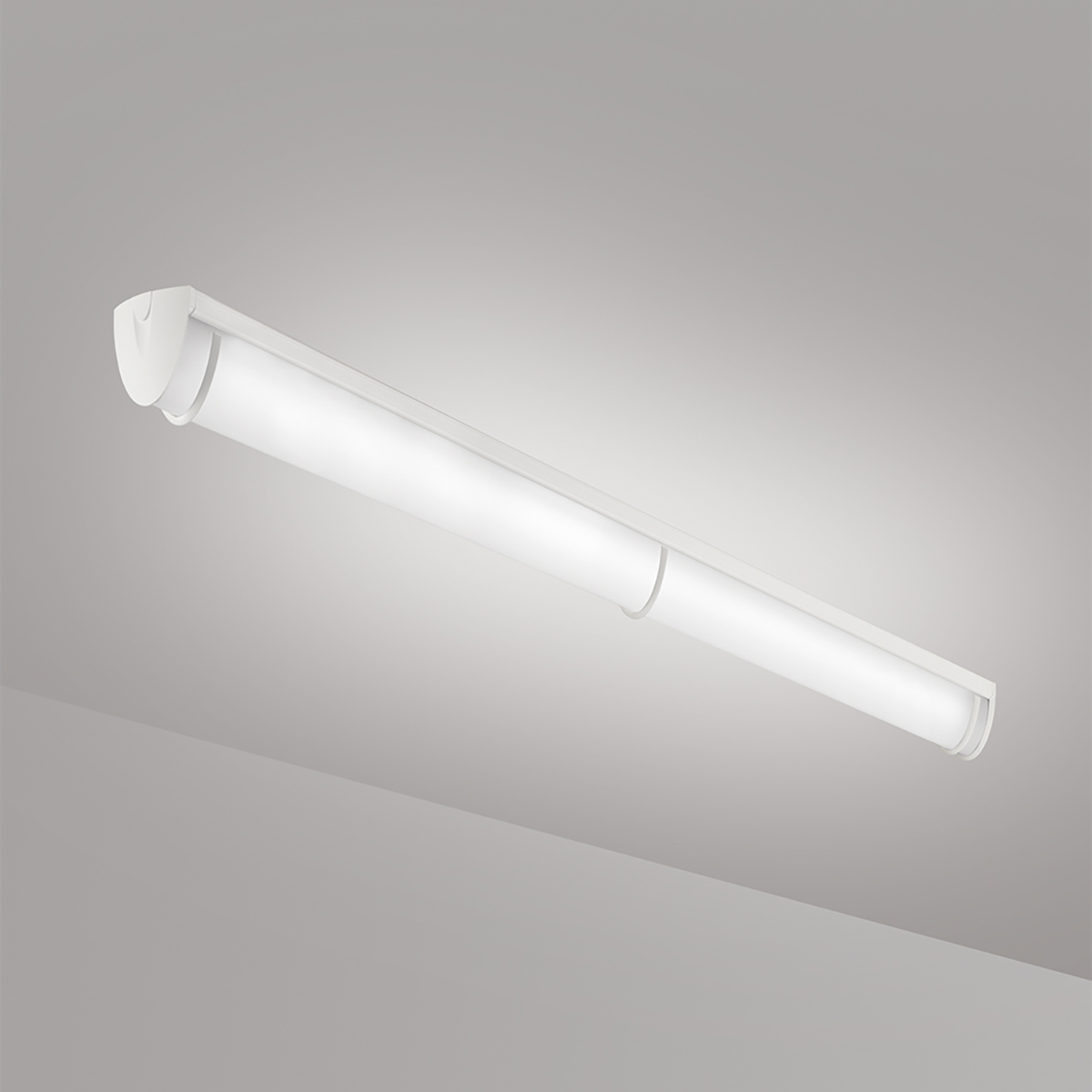

CV1806

60", Indoor, with accent

  • L
  • W
  • D
  • 60-1/8" (1527 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2800
    H: 3900-4100
  • Watts
  • L: 23
    H: 35
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body and trim accents
NULL NULL

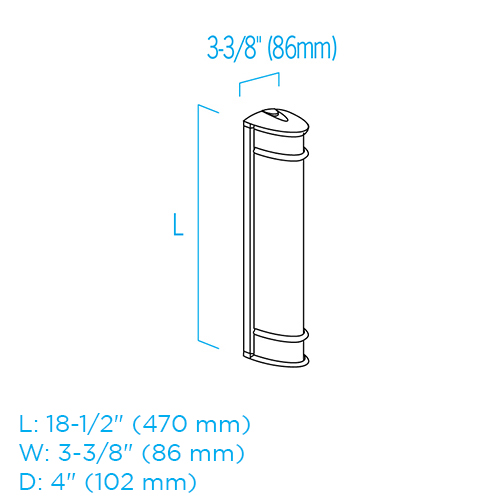

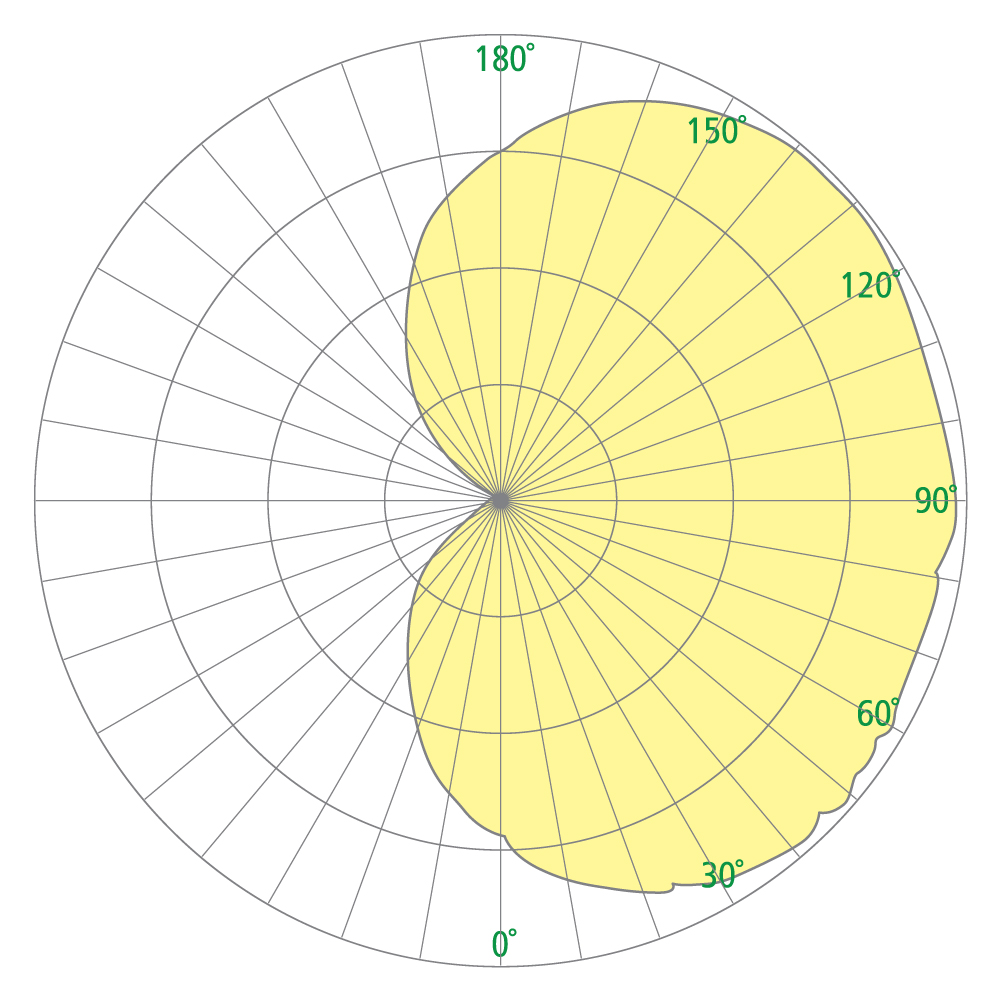

CV1818

18", Indoor, with accent

  • L
  • W
  • D
  • 18-1/2" (470 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 750
    H: 1100
  • Watts
  • L: 7
    H: 10
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body
NULL NULL

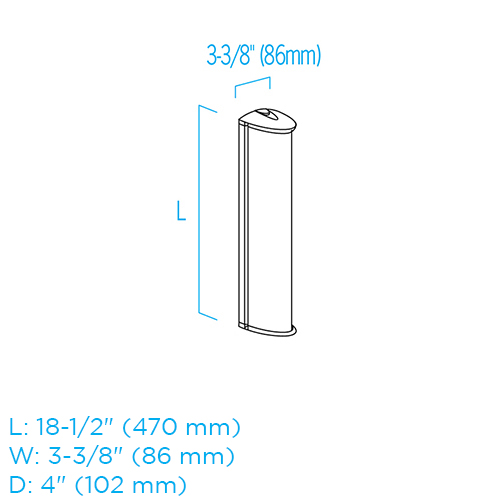

CV1820

18", Indoor, no accent

  • L
  • W
  • D
  • 18-1/2" (470 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 750
    H: 1100
  • Watts
  • L: 7
    H: 10
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body
NULL NULL

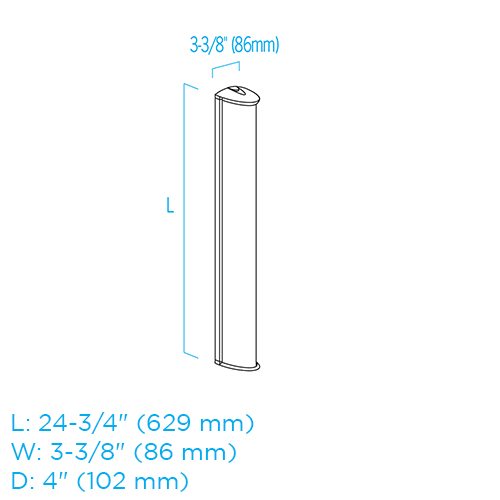

CV1822

24", Indoor, no accent

  • L
  • W
  • D
  • 24-3/4" (629 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 800
    H: 1400
  • Watts
  • L: 7
    H: 13
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body
NULL NULL

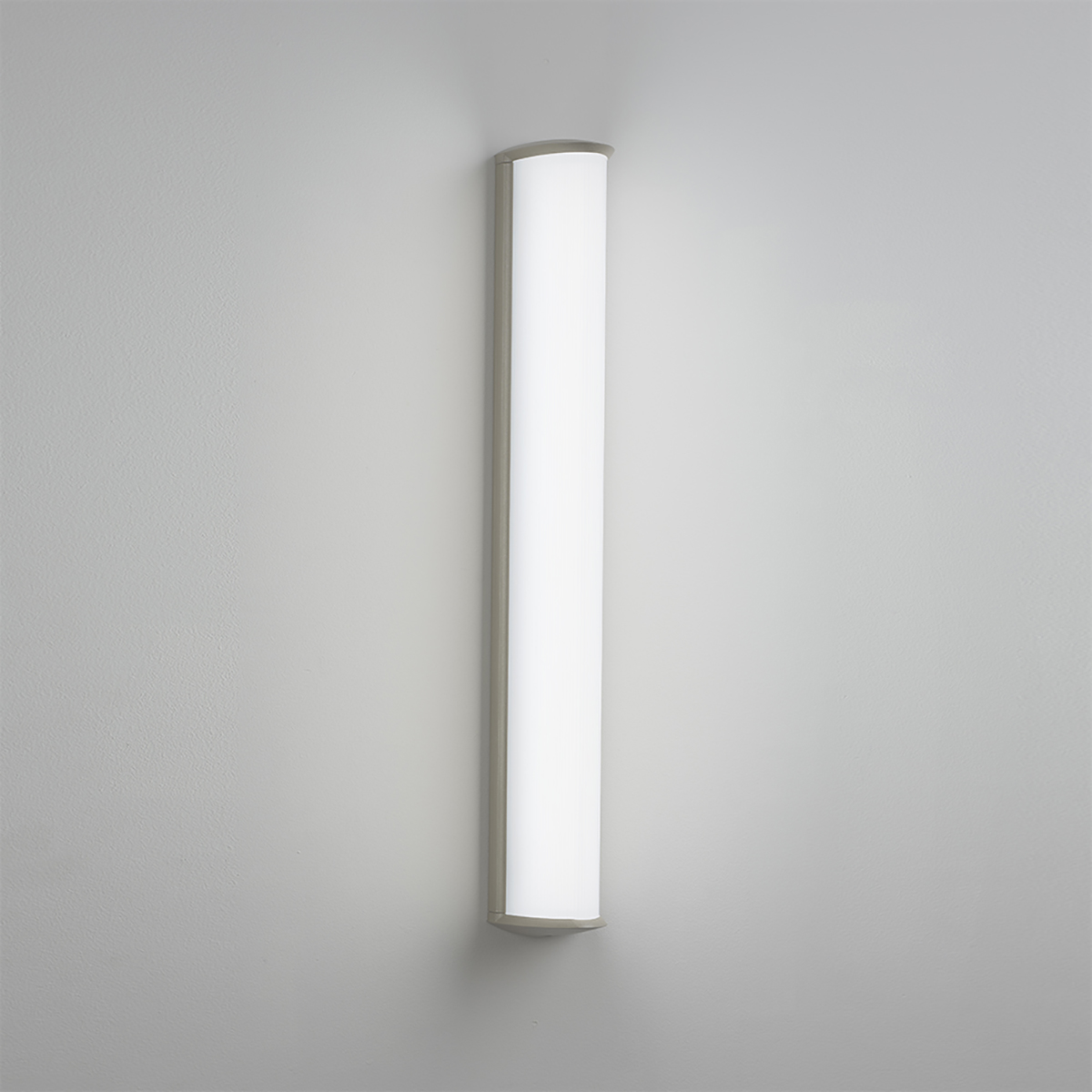

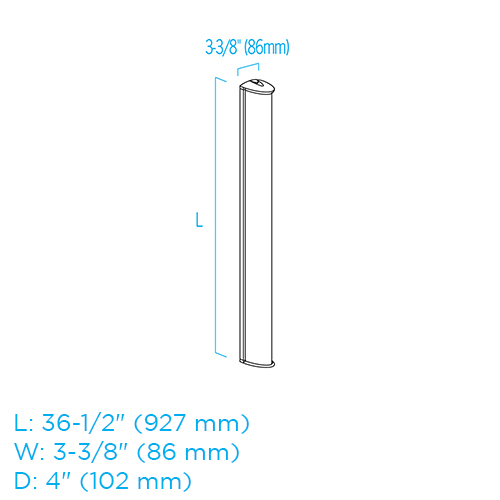

CV1824

36", Indoor, no accent

  • L
  • W
  • D
  • 36-1/2" (927 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 1900-2000
    H: 2800
  • Watts
  • L: 17
    H: 26
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body
NULL NULL

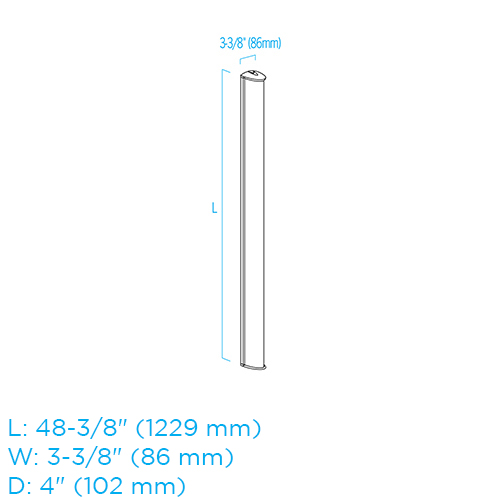

CV1826

48", Indoor, no accent

  • L
  • W
  • D
  • 48-3/8" (1229 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2200-2300
    H: 3300-3400
  • Watts
  • L: 19
    H: 29
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
A luminous surface-mounted luminaire with a curved linear diffuser body
NULL NULL

CV1828

60", Indoor, no accent

  • L
  • W
  • D
  • 60-1/8" (1527 mm)
  • 3-3/8" (86 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • L: 2800
    H: 3900-4100
  • Watts
  • L: 23
    H: 35
  • Driver
  • Integral
  • Control
  • 0-10V
  • Listings
  • Damp
    ADA
