SEQUENCE
Pendants

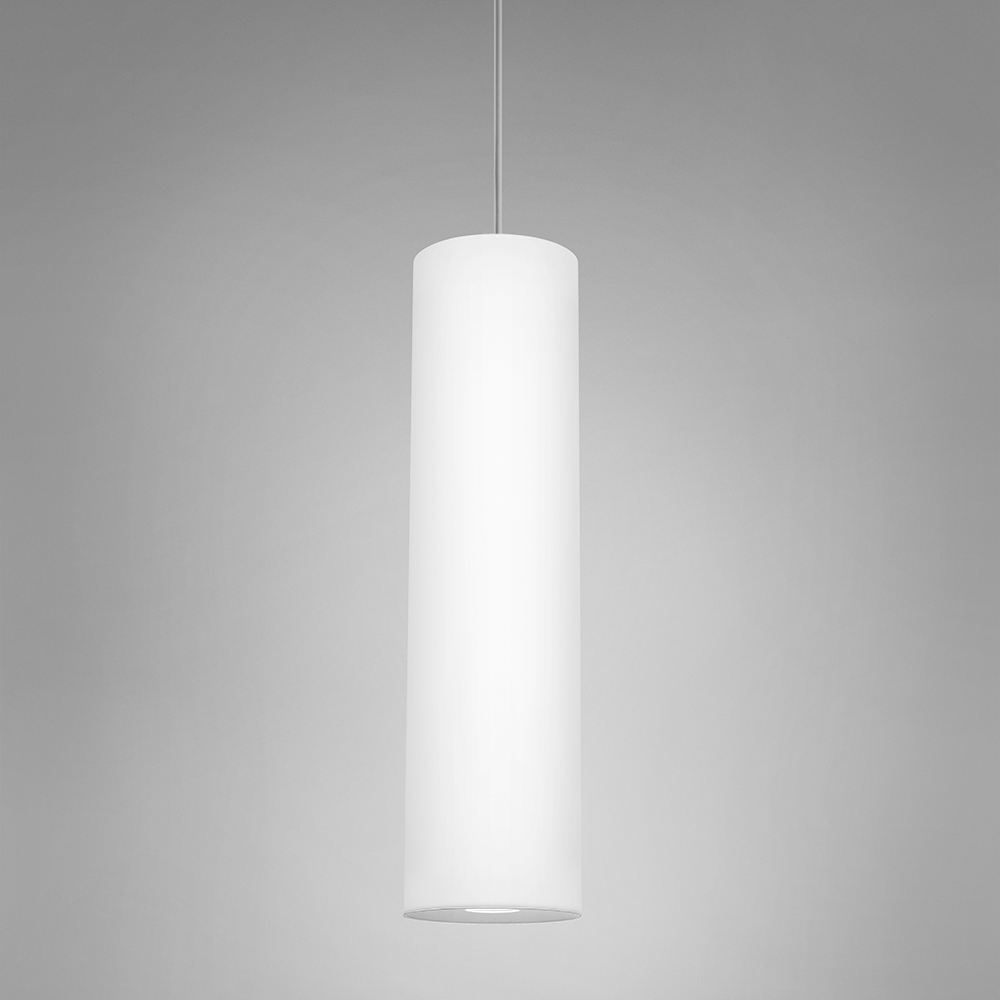

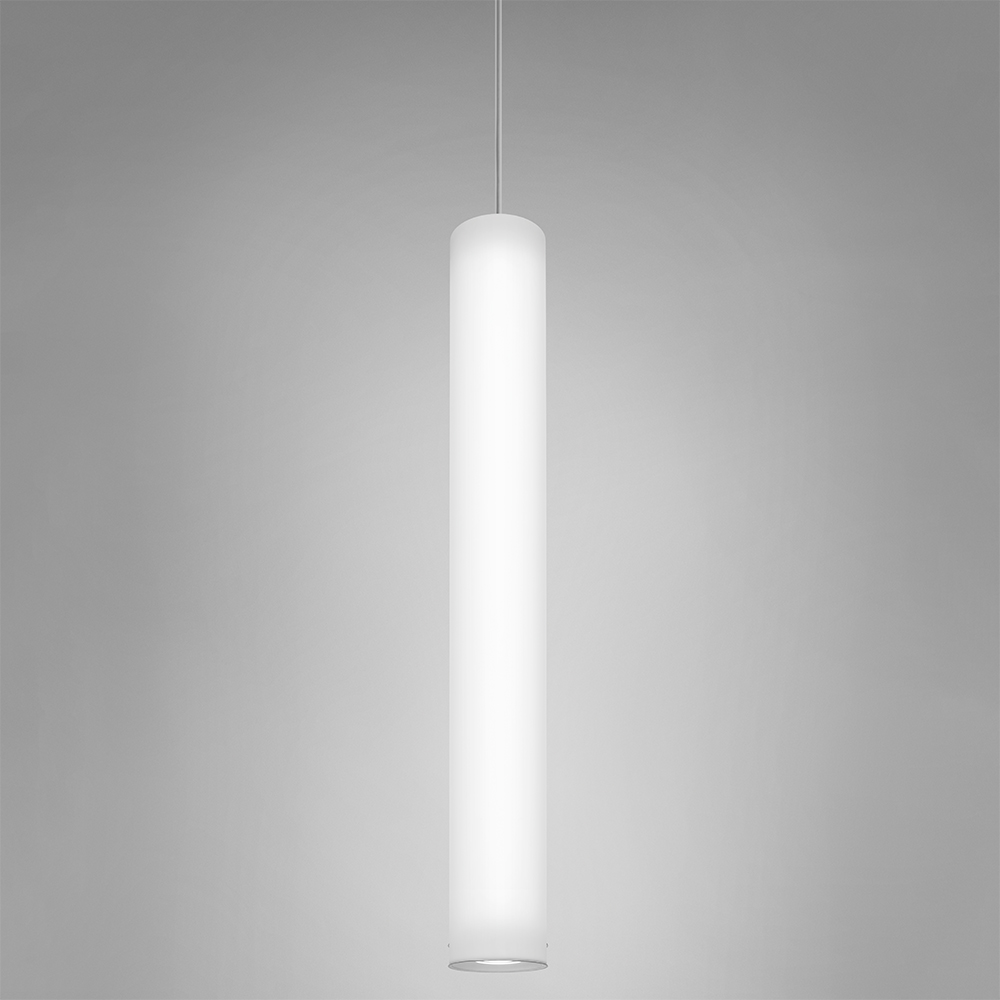

Sequence is a clean, crisply illuminated cylinder pendant light available in 4", 8", and 12" diameters. Get quality, high-output LED illumination in a multitude of cylinder lengths with the option for additional downlight. Sequence's simple shape can create a dynamic architectural rhythm in a multitude of applications.
Sequence can be easily customized, for example, a multi-fixture stacking configuration in stairwells and atriums. Contact our Applications Engineering Team for more information about modifications for your application.
- Modular design for replacement of LED source and driver
- Even illumination
- Top mounted driver is standard; Optional remote driver (RMD)
- Optional express 10 day shipping (XPS)
- BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
CP2020
4 In. x 2 Ft.
Spec Sheet Install IES RevitCP2022
4 In. x 3 Ft.
Spec Sheet Install IES RevitCP2024
4 In. x 4 Ft.
Spec Sheet Install IES RevitCP2026
4 In. x 5 Ft.
Spec Sheet Install IES RevitCP2028
4 In. x 6 Ft.
Spec Sheet Install IES RevitCP2030
4 In. x 8 Ft.
Spec Sheet Install IES RevitCP2036
8 In. x 2 Ft.
Spec Sheet Install IES RevitCP2038
8 In. x 3 Ft.
Spec Sheet Install IES RevitCP2040
8 In. x 4 Ft.
Spec Sheet Install IES RevitCP2042
8 In. x 5 Ft.
Spec Sheet Install IES RevitCP2044
8 In. x 6 Ft.
Spec Sheet Install IES RevitCP2046
8 In. x 8 Ft.
Spec Sheet Install IES RevitCP2052
12 In. x 2 Ft.
Spec Sheet Install IES RevitCP2054
12 In. x 3 Ft.
Spec Sheet Install IES RevitCP2056
12 In. x 4 Ft.
Spec Sheet Install IES RevitCP2058
12 In. x 5 Ft.
Spec Sheet Install IES RevitCP2060
12 In. x 6 Ft.
Spec Sheet Install IES RevitCP2062
12 In. x 8 Ft.
Spec Sheet Install IES Revit
Sequence pendants can be finished in our Non-VOC powder coat colors.
Painted
- Vertical configurations
- Horizontal configurations
- Pendant cluster chandelier
- Decorative cover element
Product Specifications & Documents
CP2020
4 In. x 2 Ft.
- X
- DIA
- OAH
- WT
- 34" (864 mm)
- 4" (102 mm)
- 192" (4877 mm)
- 7 lbs (3175gm)
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 1100
- Watts
- 12
- Driver
- Top mounted
or Remote option
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2022
4 In. x 3 Ft.
- X
- DIA
- OAH
- WT
- 44-7/8" (1140 mm)
- 4" (102 mm)
- 192" (4877 mm)
- 8 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 2000
- Watts
- 22
RGB: 20
- Driver
- Top mounted
or Remote option
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2024
4 In. x 4 Ft.
- X
- DIA
- OAH
- WT
- 55-5/8" (1413 mm)
- 4" (102 mm)
- 192" (4877 mm)
- 9 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 2600
- Watts
- 29
RGB: 28
- Driver
- Top mounted
or Remote option
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2026
4 In. x 5 Ft.
- X
- DIA
- OAH
- WT
- 70-1/2" (1791 mm)
- 4" (102 mm)
- 192" (4877 mm)
- 11 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 3500
- Watts
- 39
RGB: 40
- Driver
- Top mounted
or Remote option
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2028
4 In. x 6 Ft.
- X
- DIA
- OAH
- WT
- 81-1/4" (2064 mm)
- 4" (102 mm)
- 192" (4877 mm)
- 12 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 4100
- Watts
- 46
RGB: 44
- Driver
- Top mounted
or Remote option
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2030
4 In. x 8 Ft.
- X
- DIA
- OAH
- WT
- 103" (2616 mm)
- 4" (102 mm)
- 192" (4877 mm)
- 14 lbs (6350 gm)
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 5500
- Watts
- 60
- Driver
- Top mounted
or Remote option
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2036
8 In. x 2 Ft.
- X
- DIA
- OAH
- WT
- 25" (635 mm)
- 8" (203 mm)
- 192" (4877 mm)
- 10 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 4300-4400
- Watts
- 48
RGB: 24
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2038
8 In. x 3 Ft.
- X
- DIA
- OAH
- WT
- 36" (914 mm)
- 8" (203 mm)
- 192" (4877 mm)
- 16 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 7600-7800
- Watts
- 86
RGB: 40
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2040
8 In. x 4 Ft.
- X
- DIA
- OAH
- WT
- 47" (1194 mm)
- 8" (203 mm)
- 192" (4877 mm)
- 23 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 9800-10100
- Watts
- 110
RGB: 56
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2042
8 In. x 5 Ft.
- X
- DIA
- OAH
- WT
- 58" (1473 mm)
- 8" (203 mm)
- 192" (4877 mm)
- 30 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 13000-13400
- Watts
- 146
RGB: 79
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2044
8 In. x 6 Ft.
- X
- DIA
- OAH
- WT
- 69" (1753 mm)
- 8" (203 mm)
- 192" (4877 mm)
- 35 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 15300-15700
- Watts
- 171
RGB: 87
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2046
8 In. x 8 Ft.
- X
- DIA
- OAH
- WT
- 91" (2311 mm)
- 8" (203 mm)
- 192" (4877 mm)
- 42 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 20700-21400
- Watts
- 233
RGB: 118
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2052
12 In. x 2 Ft.
- X
- DIA
- OAH
- WT
- 25" (635 mm)
- 12" (305 mm)
- 192" (4877 mm)
- 14 lbs (6350 gm)
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 4500-4600
- Watts
- 48
RGB: 24
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2054
12 In. x 3 Ft.
- X
- DIA
- OAH
- WT
- 36" (914 mm)
- 12" (305 mm)
- 192" (4877 mm)
- 21 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 8000-8200
- Watts
- 86
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2056
12 In. x 4 Ft.
- X
- DIA
- OAH
- WT
- 47" (1194 mm)
- 12" (305 mm)
- 192" (4877 mm)
- 30 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 10300-10600
- Watts
- 110
RGB: 56
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2058
12 In. x 5 Ft.
- X
- DIA
- OAH
- WT
- 58" (1473 mm)
- 12" (305 mm)
- 192" (4877 mm)
- 39 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 13700-14100
- Watts
- 147
RGB: 79
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2060
12 In. x 6 Ft.
- X
- DIA
- OAH
- WT
- 69" (1753 mm)
- 12" (305 mm)
- 192" (4877 mm)
- 45 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 16000-16500
- Watts
- 172
RGB: 87
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
CP2062
12 In. x 8 Ft.
- X
- DIA
- OAH
- WT
- 91" (2311 mm)
- 12" (305 mm)
- 192" (4877 mm)
- 56 lbs
- CCT
- 3000K
3500K
4000K
RGB
- Lumens
- 21800-22400
- Watts
- 233
RGB: 118
- Driver
- Integral
- Control
- 0-10V to 1%
DMX
- Listings
- Damp
Luminous Cylinder Pendant Lights
View our most popular cylinder pendant light – Sequence installed in a variety of applications! View Sequence Gallery
Cylinder Pendants with Unmatched Quality
Since its original launch in 2009, we have sold thousands of our beloved Sequence pendants. In that time, we have perfected and optimized the design to be the best-looking and easy-to-use cylinder pendant product on the market.
View the Sequence FamilyIlluminated Cylinder Pendant: An Architectural Staple
Visa Lighting has changed the game with its award-winning family of long, luminous cylinder pendant lights – Sequence.
Sequence's luminous cylindrical style has become ubiquitous in lighting designs across every building type because it highlights the surrounding architectural lines and provides beautiful, usable illumination from a sleek and easy to repeat form. This simple cylindrical shape opens up opportunities for lighting designers to create large-scale arrangements and clusters.
Extensive Offering of Sizes and Features
Sequence is available in 4", 8", and 12" diameters with a variety of body lengths ranging from 2' - 8'. Choose between three color temperatures or RGB for the luminous cylinder body.
An optional downlight is available with Narrow, Medium or Wide optic beam angles for areas that need more light.
The integral LED driver allows for a sleek canopy design.
Video: Sequence Cylinder Pendant with RGB
See What Sets Sequence Apart
Sequence has been updated to be evenly illuminated from endcap to endcap. This up-close product inspection looks at Sequence's various features and highlights product details.

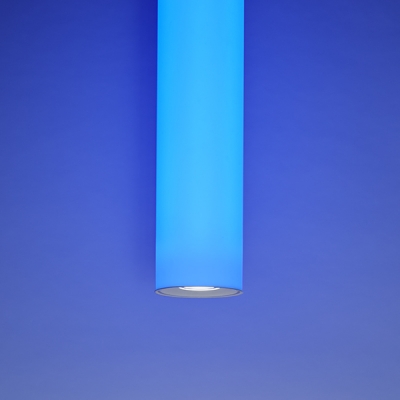

Add a pop of color to your space with Sequence RGB! You can program Sequence to beautifully illuminate in any color with these DMX-512 compatible RGB models.
Learn MoreSequence Can Be Easily Modified
Looking for an opportunity to turn heads? Add decorative housing elements to the luminous cylinder or create a design with several Sequences stacked horizontally or vertically.
Our lighting applications team can work with you to create a product specialized to your application. Contact our Applications Engineering Team to learn more and see our previous custom designs.
View Sequence OutdoorSequence Outdoor Pendants
Sequence Outdoor models are available with catenary, canopy, and stem mounting options. These pendants are built to withstand the elements and exceed durability standards.
Their sleek rhythmic style charms the crowd, and their flexible mounting makes them easy to work with for designers. Available in various sizes with optional RGB output.
View Sequence MiniSequence Mini Pendants
With a diameter of 2", the Sequence Mini family has all the versatility of the original Sequence — and then some.
Sequence Mini is a slim cylindrical LED pendant available in a multitude of increments ranging from 12” to 72”. With downlight options, horizontal models, and remote driver or driver-in-canopy options, Sequence Mini can fit into a multitude of lighting designs.
