SYMMETRY
General Use Lights
Symmetry is a beautiful concave recessed ceiling mount light with a graceful, shallow dome in the center that offers an out-of-the box aesthetic. High-quality sources provide easy-on-the-eyes illumination in multiple output options, including tunable CCT for circadian rhythm support.
- Integral driver located is accessible from below the ceiling
- Shallow recessed depth minimizes interference within ceiling plenum
- BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
CM1972-T
45", Tunable
Spec Sheet Install IES Revit SketchupCM1972-W
45", General Use
Spec Sheet Install IES Revit SketchupCM1982-T
23" Tunable
Spec Sheet Install IES RevitCM1982-W
23" General Use
Spec Sheet Install IES Revit
Symetry general use lights can be finished in our Non-VOC powder coat colors.
Painted
- Custom colors
Product Specifications & Documents
CM1972-T
45", Tunable
- RW
- RD
- DIA
- 44" (1118 mm)
- 5-7/8” (152 mm)
- 44.5” (1130 mm)
- CCT
- 2700K-6500K
- Lumens
- L: 3200
H: 5300
- Watts
- L: 29
H: 50
- Driver
- Integral
- Control
- 0–10V to 10%
- Listings
- Damp
CM1972-W
45", General Use
- RW
- RD
- DIA
- 44" (1118 mm)
- 6" (152 mm)
- 44.5" (1130 mm)
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 3100-3200
H: 5200-5400
- Watts
- L: 29
H: 49
- Driver
- Integral
IEM option
- Control
- 0-10V to 1%
DALI
Zigbee
- Listings
- Damp
CM1982-T
23" Tunable
- RW
- RD
- DIA
- 23-1/2" (597 mm)
- 6-1/2" (165 mm)
- 22-7/8" (581 mm)
- CCT
- 2700-6500K
- Lumens
- L: 3000
H: 5000
- Watts
- L: 35
H: 63
- Driver
- Integral
Remote EM
- Control
- 0-10V to 1%
- Listings
- Damp
CM1982-W
23" General Use
- RW
- RD
- DIA
- 23-1/2" (597 mm)
- 6-1/2" (165 mm)
- 22-7/8" (581 mm)
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 2900-3000
H: 4900-5100
- Watts
- L: 35
H: 61
- Driver
- Integral
Remote EM
- Control
- 0-10V to 1%
DALI
- Listings
- Damp
Round Recessed Ceiling Light

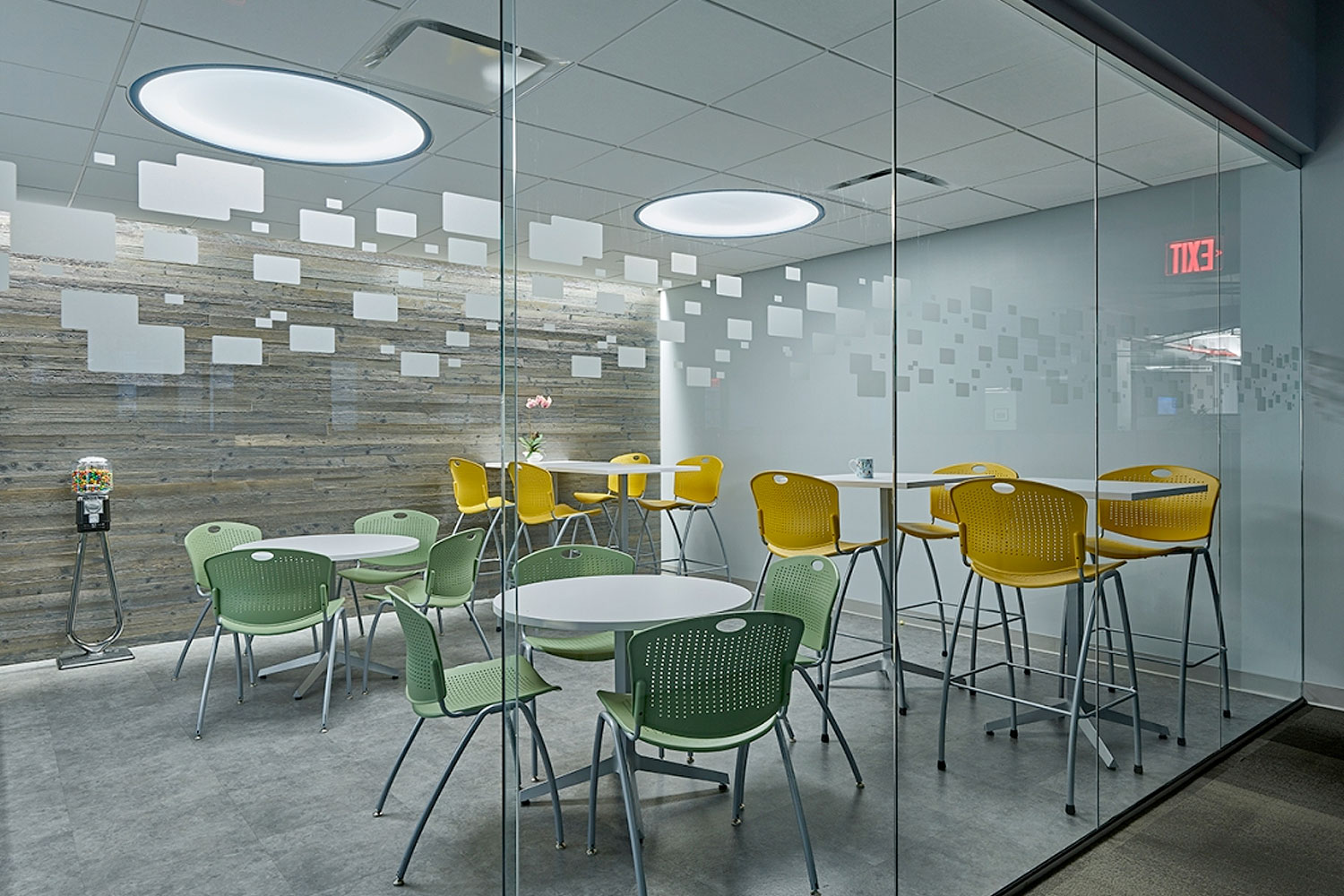

Enhance workplace and commercial environments with pleasant, soothing ambient lighting. View More Symmetry Application Photos
Video: Symmetry, Beautifully simple.
Round, Recessed Ceiling Light
Symmetry’s round, recessed ceiling luminaires feature a patented concave dome in the center of the lens that creates a beautiful ambient glow. These remarkable lights will elevate your lighting design and bring a refreshing bit of style to your space.
View the Symmetry FamilyTunable Sources for Circadian Rhythm Support
Tunable lighting is important in applications that lack access to natural sunlight and where people spend significant hours, such as education and workplace environments.
Symmetry was designed to meet this need as an advanced tunable luminaire. Illuminated with a 5-LED-channel controllable system capable of 1650K-8000K at 90CRI along with a full color gamut of saturated colors, it is dimmable via 0-10V or DMX-RDM to 1%.
View Healthcare and Behavioral Health ModelsHigh Quality Sources and Construction
Symmetry is suitable for drywall and T-bar grid ceiling systems. LED power supplies are located within the housing and accessible below the ceiling. Symmetry is a sealed construction, hospital grade fixture with options such as anti-microbial finishes and dimming via DALI to 5%. Created and tested to the high quality standards that are Visa Lighting’s hallmark, these innovative round luminaires are made in America and include a 5-year warranty.
