LIBERTY
Behavioral Health/High Abuse Momentary Switches

These high-abuse momentary switch assemblies are available in single, dual, and triple-gang models and compliment Visa Lighting behavioral health/high abuse lighting products. The face plate is machined from solid aluminum. Liberty can be used where switches are vulnerable to damage in high abuse and behavioral health applications. These low voltage switches pair perfectly with our LVPC-DIM controller but also function properly with any other control system with momentary-contact inputs.

  • Room-side sealed & high abuse resistant construction
  • Stainless steel switch body and actuator
  • Momentary switch function (normally OFF)
  • Switches rated for max 0.1A, 24VDC
  • Can be combined with LVPC-DIM accessory to control multiple zones with optional lockout & override functions
  • Class 2 circuits only
  • Switches recessed into wall plates for enhanced resistance to tampering Installs into single, dual, or three-gang recessed switch boxes (by others) using provided screws
  • Stainless Steel fasteners
  • IP65 rated
  • IK10+ impact resistant
  • Single piece machined aluminum wall plate
  • Tamper-resistant hardware
MODELS:
Painted
Velvet Black
Deoro Gold
Agate Grey
Alpine Green
Cove Blue
Glacier White
Harbor Grey
Jet Black
Ocean Blue
Sagebrush Green
Shoreline Grey
Slate Grey
Sierra Taupe
Terracotta Canyon
Traffic White
Vineyard Red
Blade Silver
Graphite Silver
Bronze
Bronze Matte
  • Illuminated switch rings
  • Custom markings on plates (icons, text, etc.)
Where to Buy? Contact a Sales Representative or Request a Quote

Product Specifications & Documents

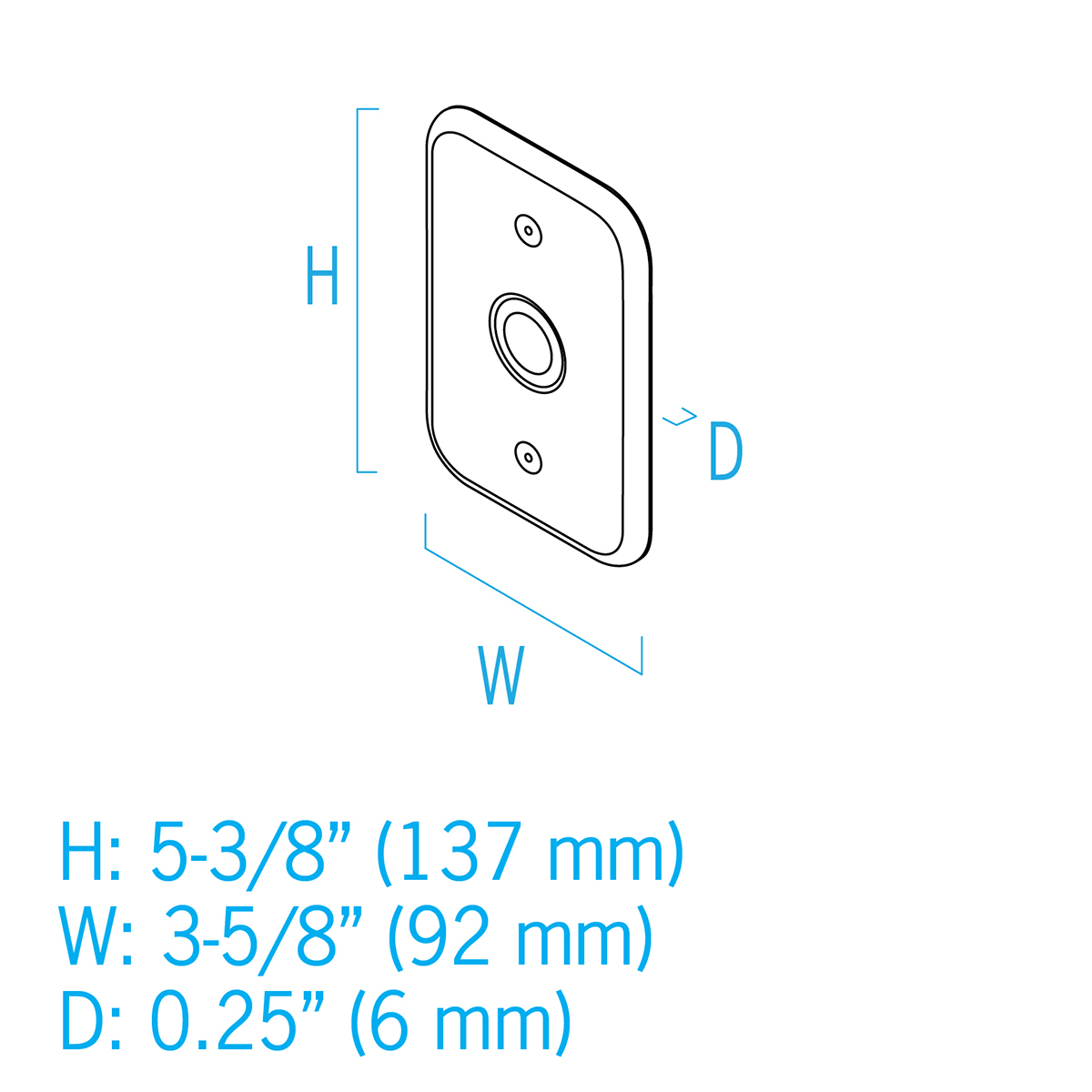

Liberty single gang momentary switch
Null

SW7070-1G1S

Single Gang Single Switch Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 3-5/8” (92 mm)
  • 0.25” (6 mm)

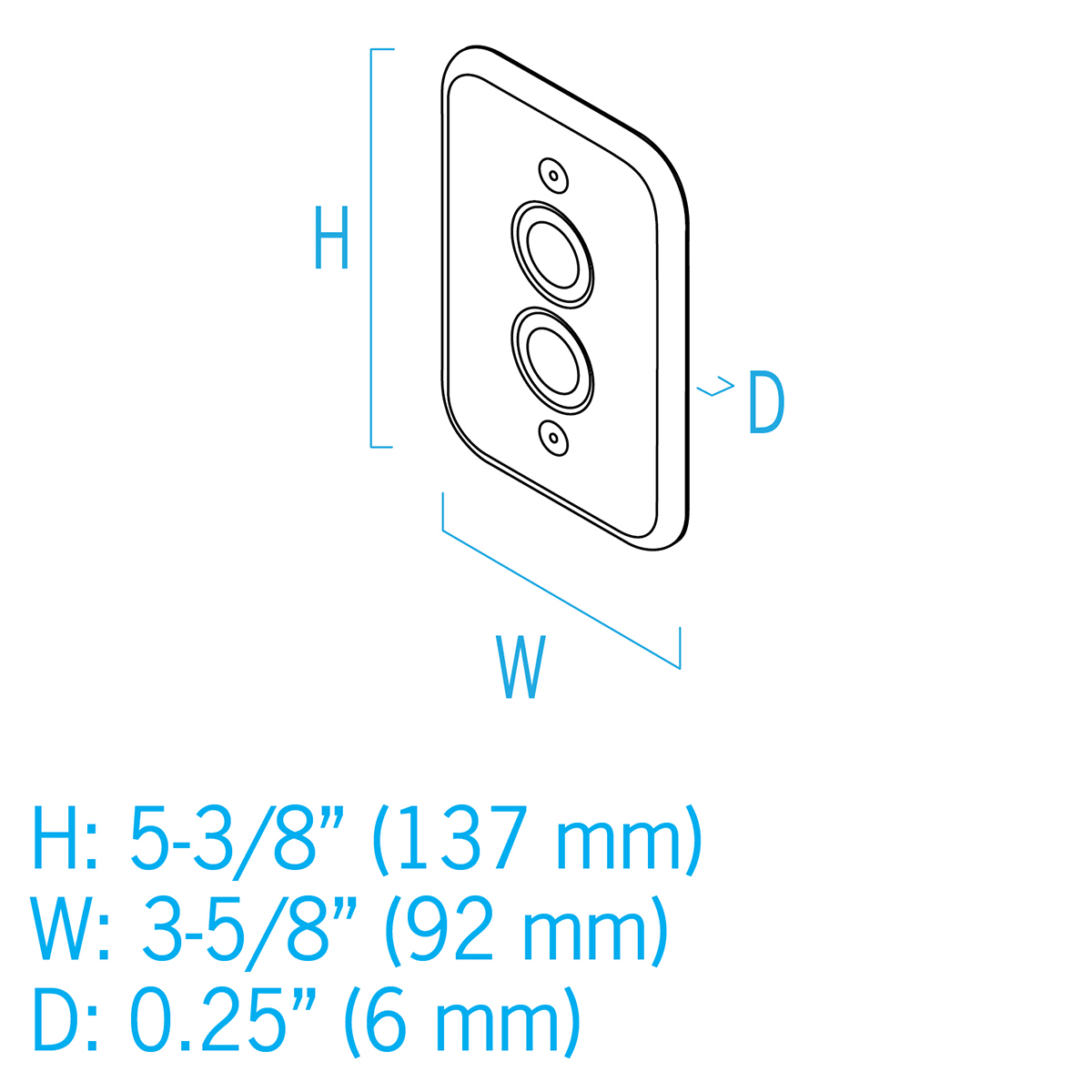

Liberty single gang double switch momentary switch
Null

SW7070-1G2S

Single Gang Dual Switch Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 3-5/8” (92 mm)
  • 0.25” (6 mm)

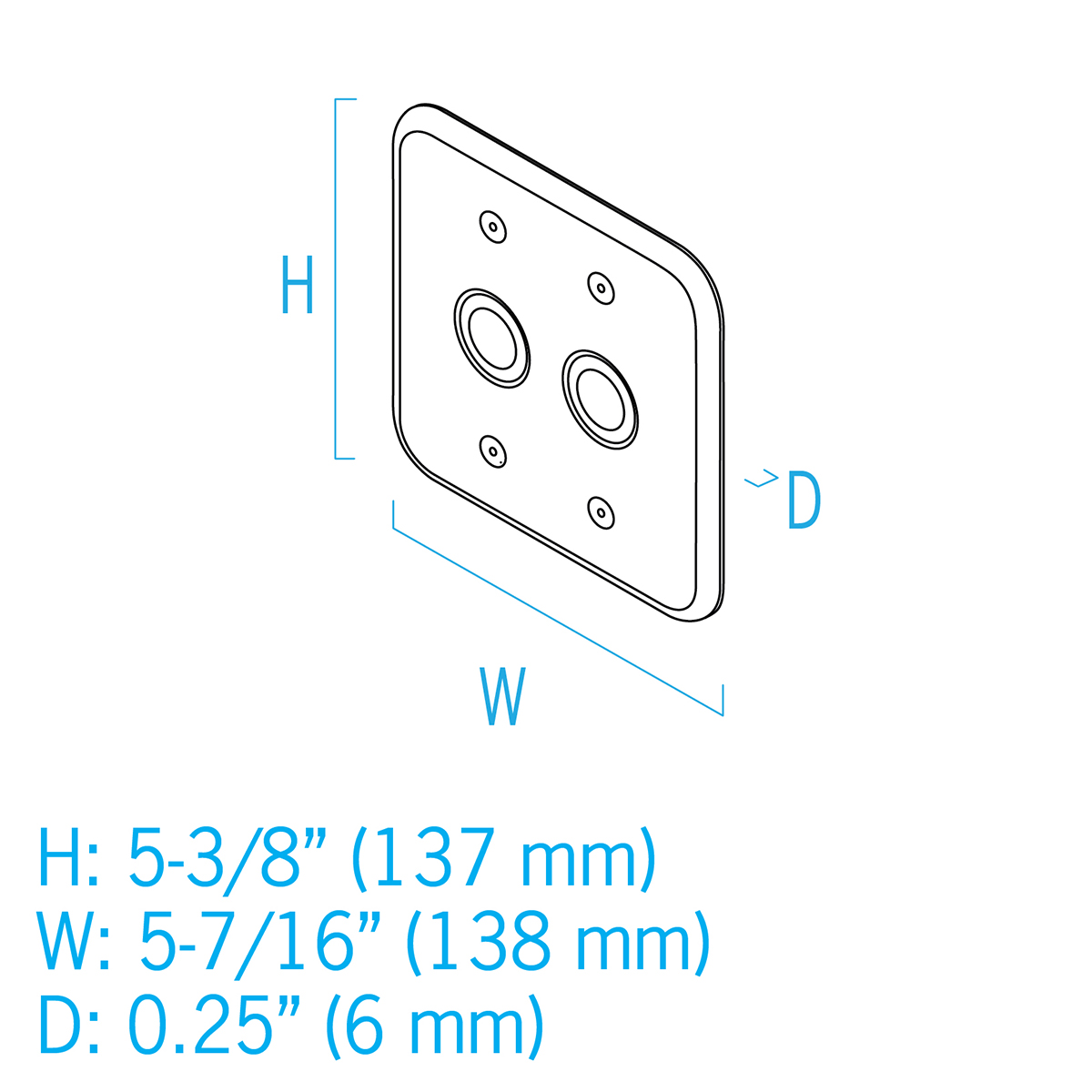

Liberty dual gang momentary switch
Null

SW7070-2G2S

Dual Gang Dual Switch Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 5-7/16” (138 mm)
  • 0.25” (6 mm)

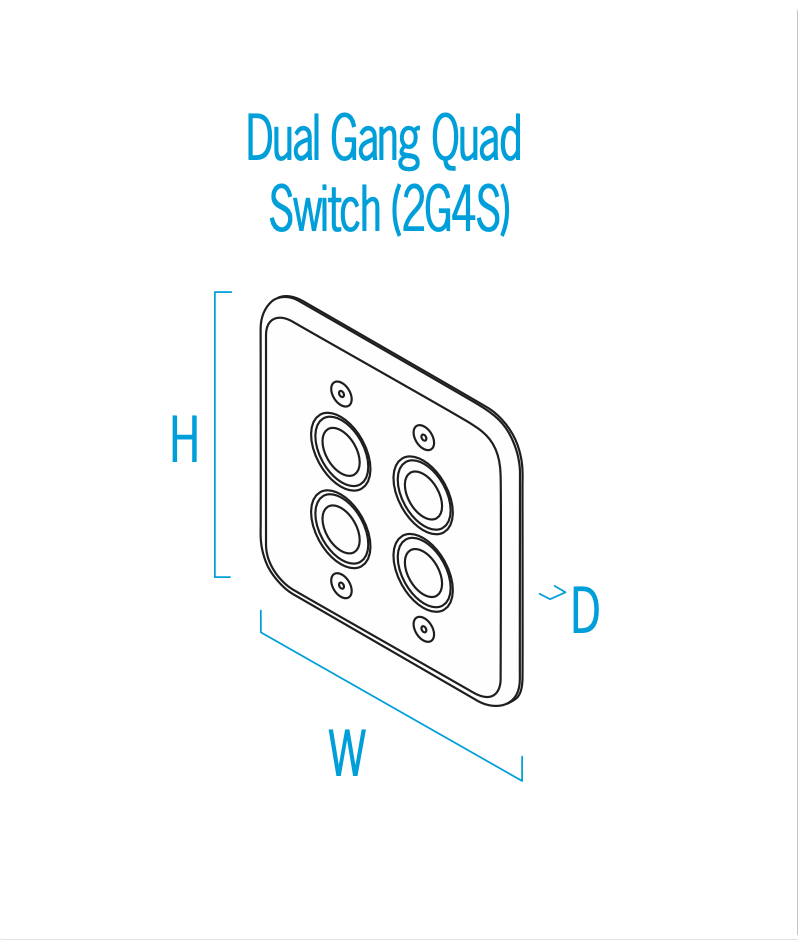

Liberty
Dual Gang Quad Switch, Liberty

SW7070-2G4S

Dual Gang Quad Switch Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 5-7/16” (138 mm)
  • 0.25” (6 mm)

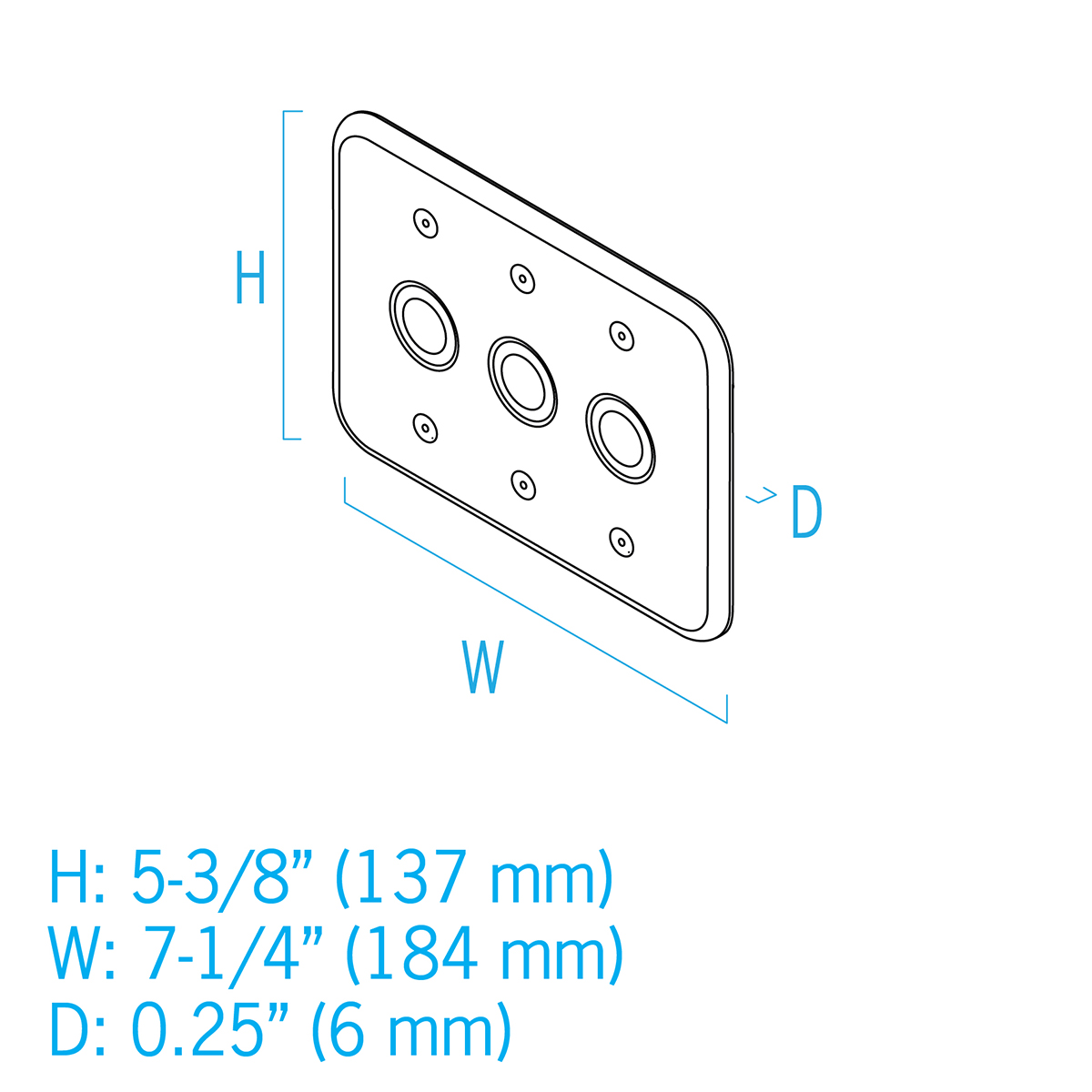

Liberty triple gang momentary switch
Null

SW7070-3G3S

Triple Gang Triple Switch Wall Switch

  • H
  • W
  • D
  • 5-3/8” (137 mm)
  • 7-1/4” (184 mm)
  • 0.25” (6 mm)
