SOLE - OVAL
Behavioral Health/High Abuse Mirror
The Sole luminaire was Visa Lighting’s first illuminated mirror designed specifically for behavioral health/high abuse applications. With an impact-resistant polycarbonate mirror and tamper-resistant hardware, Sole is ideal for patient bathrooms. Sole’s attractive aesthetic fits high end hospitality designs, providing a warm, relaxing environment for behavioral health/high abuse facility patients. The Sole light sources are minimum 90CRI standard, with an optional amber LED night light.
Sole is also offered in a non-illuminated version to compliment Visa Lighting’s Sanibel Behavioral Health sconce. These unlit mirrors have the option of the impact-resistant polycarbonate mirror or a stainless-steel mirror.
- Ligature-resistant
- Tamper-resistant hardware
- Lighted Sole – Remote driver box is delivered wired and attached to the back of the LED assembly
- Lighted Sole – Recommend removing driver box from LED assembly and mounting in a remote location to allow servicing without disturbing mirror installation
- Lighted Sole – Optional amber LED Night Light
- Unlit Sole – Polycarbonate or stainless steel mirror material options
- BAA (Buy American Act) and BABA (Build American, Buy America) compliant
MODELS:
CB1853
Illuminated Oval
Spec Sheet Install IES BIM FileCB1857
Non-Illuminated Oval
Spec Sheet Install
The Sole lighted mirror can be finished in our Non-VOC powder coat colors.
Painted
Product Specifications & Documents

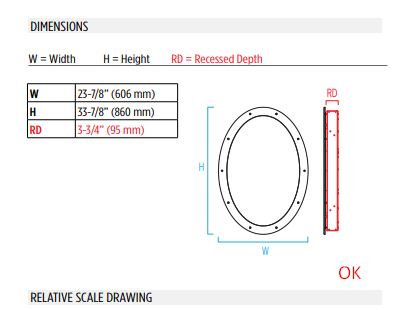

CB1853
Illuminated Oval
- H
- W
- RD
- 33-7/8” (860 mm)
- 23-7/8” (606 mm)
- 3-3/4” (95 mm)
- CCT
- 3000K
3500K
4000K
- Lumens
- L: 400
H: 800
- Watts
- L: 14
H: 20
- Driver
- Integral
- Control
- 0-10V
- Listings
- Wet
IP65
IK10+
ADA

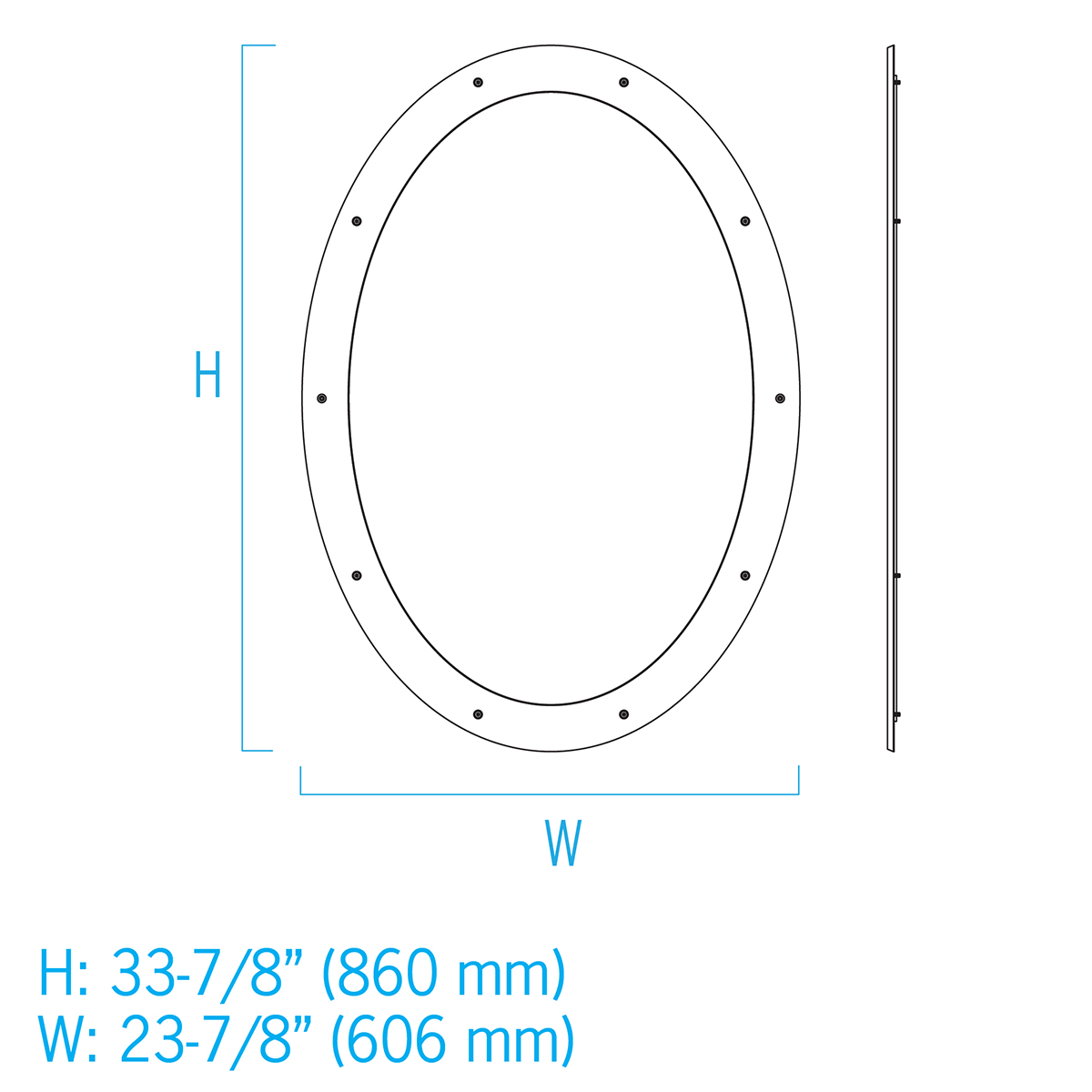

CB1857
Non-Illuminated Oval
- H
- W
- 33-7/8” (860 mm)
- 23-7/8” (606 mm)
- Listings
- Wet
IP65
IK10+
ADA
SOLE (ft. Nightlight)
This shallow, recessed mirror with integrated LED lighting provides a stylish solution for behavioral health/high abuse environments. The sturdy construction and durable materials are designed with safety in mind, while offering an attractive aesthetic for tough applications such as behavior health/high abuse facilities, dormitories, and public restrooms.
SOLE Oval Mirror: Impact Resistance Testing
Designed for behavioral health/high abuse applications, the Sole Oval Mirror features a mirrored polycarbonate with laser cut-outs for illumination and is built for impact, ligature, and tamper resistance. Here, we test for impact resistance on a mock installation.
