Unity

Our award-winning Unity patient room luminaires are designed for warmth, visual comfort, and multifunctionality. In the healthcare environment, quality lighting with a more residential feel can make a big difference in the overall environment of the space. That's why we developed this family to include all LED sources from overbed 2x2,  2x4, 9" tandems, table lamps, sconces, and the newly released 3"-wide dual overbed slots.

The curved lens is seen in all mounting types across this collection, whether from smooth acrylic or fabric-like tri-lam diffusers.



*Contact factory for availability of CM1910-T

Source

Mounting

Special Features

Healthcare

CM1910-W
Dual Overbed Slots
  • L
  • W
  • RD
  • 47-3/4" (1213 mm)
  • 3" (76 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 5300-5600 (amb)
    7600-8000 (exam)
    12700-13400(comb)
  • Watts
  • 57
    89
    144
  • Power
  • Integral
  • Control
  • 0-10V to 1%

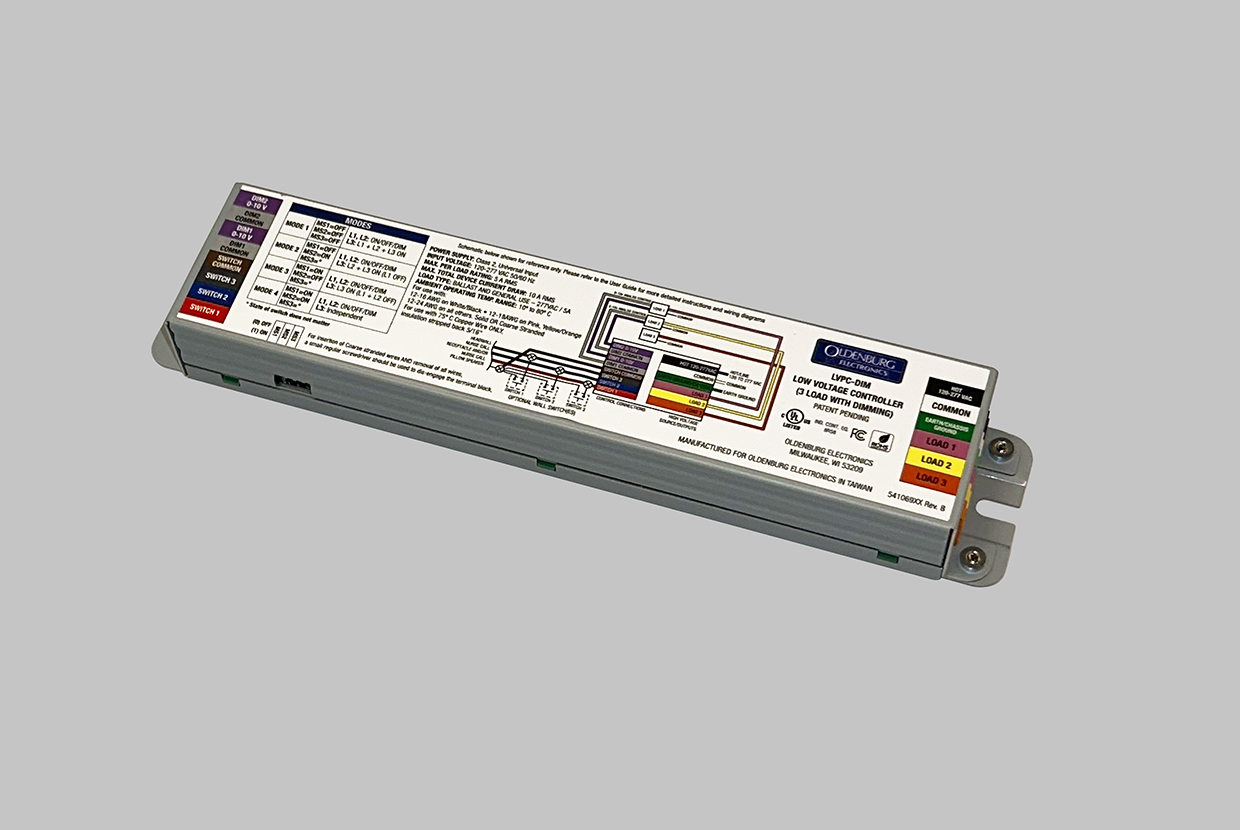

    LVPC-DIM
    DALI
    Lutron
  • Criterion
  • Damp
CM1910-T
Dual Overbed Slots
Tunable
  • L
  • W
  • RD
  • 47-3/4" (1213 mm)
  • 3" (76 mm)
  • 4" (102 mm)
  • CCT
  • 2700K-5000K
  • Lumens
  • 3000 (amb)
    6300 (exam)
    9200 (comb)
  • Watts
  • 39
    82
    119
  • Power
  • Integral
  • Control
  • 0-10V to 5%
    LVPC-DIM
  • Criterion
  • Damp
CM1900
2' x 2'
  • L
  • W
  • RD
  • 23-5/8" (600 mm)
  • 23-5/8" (600 mm)
  • 3-1/2" (89mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 4200-4300
    11100-11400
  • Watts
  • 58
    126
  • Power
  • Integral
  • Control
  • 0-10V to 1%
    LVPC-DIM
  • Criterion
  • Damp
CM1901
No Reading
  • L
  • W
  • RD
  • 23-5/8" (600 mm)
  • 23-5/8" (600 mm)
  • 3-1/2" (89mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 2400
    9600-9900
  • Watts
  • 22
    91
  • Power
  • Integral
  • Control
  • 0-10V to 1%
    LVPC-DIM
  • Criterion
  • Damp
CM1906
2' x 4'
  • L
  • W
  • RD
  • 47-5/8" (1210 mm)
  • 23-5/8" (600 mm)
  • 3-1/2" (89mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 4700-4800
    11800-12200
  • Watts
  • 56
    125
  • Power
  • Integral
  • Control
  • 0-10V to 1%
    LVPC-DIM
  • Criterion
  • Damp
CM1912
9" x 4' Tandem
  • L
  • W
  • RD
  • 47-3/4" (1231 mm)
  • 8-3/4" (222 mm)
  • 3-1/2" (89mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 3800-4100 (read)
    2400-2500 (amb)
    6800-7000 (exam)
  • Watts
  • 86
    24
    31
  • Power
  • Integral
  • Control
  • 0-10V to 1%
    LVPC-DIM
  • Criterion
  • Damp
CB1900
ADA
  • H
  • W
  • D
  • 12" (305 mm)
  • 12" (305 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 1300
    1900-2000
  • Watts
  • 13
    20
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
    ADA
CB1902
Top and Bottom Lens
  • H
  • W
  • D
  • 12" (305 mm)
  • 12" (305 mm)
  • 4" (102 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 1300
    1900-2000
  • Watts
  • 13
    20
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
    ADA
CB1904
Headwall
  • H
  • W
  • D
  • 7-1/4" (184 mm)
  • 49" (1245 mm)
  • 7-1/8" (181 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 2500-2600 (read)
    5100-5200 (amb)
    7500-7800 (comb)
  • Watts
  • 23
    44
    66
  • Power
  • Integral
  • Control
  • 0-10V to 1%
    LVPC-DIM
    Pull Chain
  • Criterion
  • Damp
TF1904
Fixed Base
  • H
  • SH
  • W
  • D
  • 29-1/2" (749 mm)
  • 14" (356 mm)
  • 15" (318 mm)
  • 7-1/8" (181 mm)
  • CCT
  • 2700K
  • Lumens
  • 800
  • Watts
  • 25
  • Power
  • Plug
  • Control
  • Integral dim
    Rocker switch
  • Criterion
  • Damp
TF1906
Freestanding
  • H
  • SH
  • W
  • D
  • 30-1/8" (765 mm)
  • 14" (356 mm)
  • 15" (318 mm)
  • 7-1/8" (181 mm)
  • CCT
  • 2700K
  • Lumens
  • 800
  • Watts
  • 25
  • Power
  • Plug
  • Control
  • Integral dim
    Rocker switch
  • Criterion
  • Damp
TF1908
Charging Base
  • H
  • SH
  • W
  • D
  • 32-1/2" (826 mm)
  • 14" (356 mm)
  • 15" (318 mm)
  • 7-1/8" (181 mm)
  • CCT
  • 2700K
  • Lumens
  • 800
  • Watts
  • 25
  • Power
  • Plug
  • Control
  • Integral dim
    Rocker switch
  • Criterion
  • Damp
