Infinity Performance

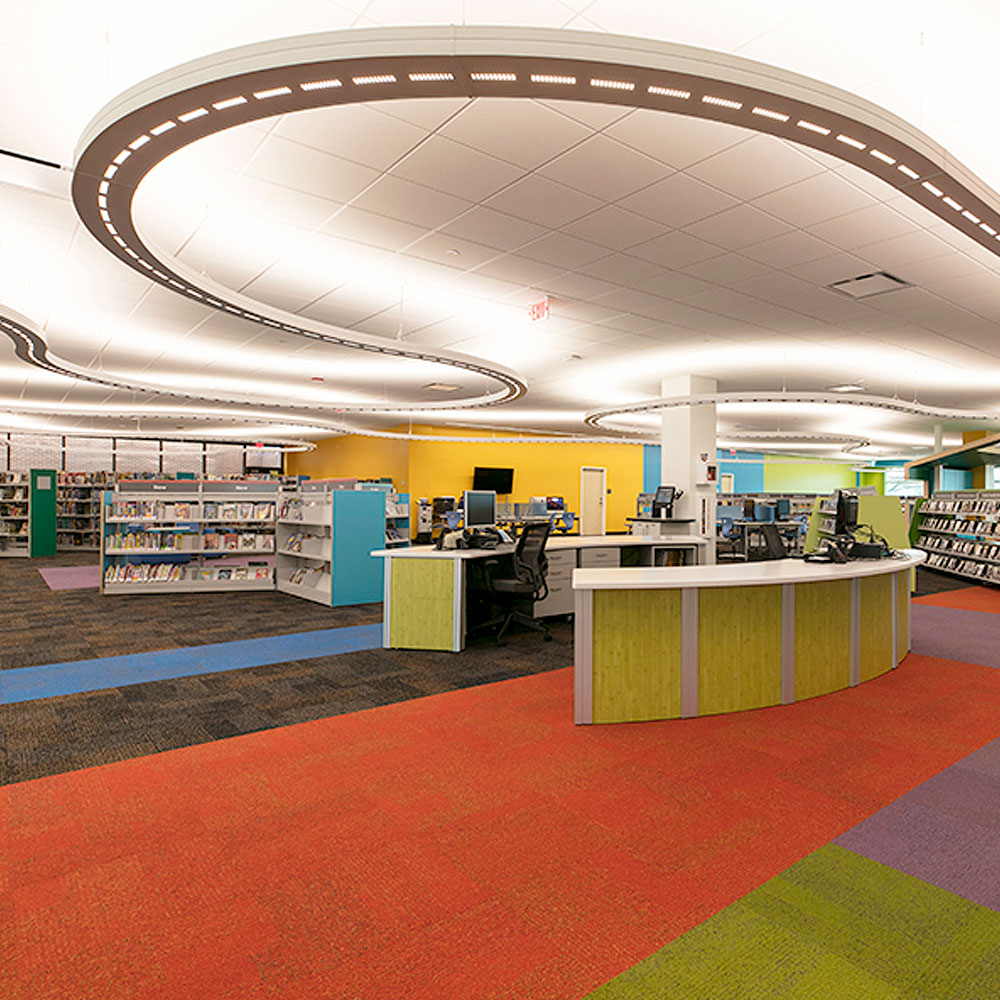

Infinity is a unique fixture for feature space applications as a standalone pendant, or configure multiple fixtures to form circles, curves or other patterns.

Source

Mounting

Special Features

  • L
  • OAH
  • See CP models
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • See CP models
  • Watts
  • See CP models
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
CP5022
16' Circle
  • Dia
  • OAH
  • 192" (4877 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 45100-46500
    69500-71600
  • Watts
  • 430
    698
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
CP5020
8' Circle
  • Dia
  • OAH
  • 96" (2438 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 22500-23200
    34700-35800
  • Watts
  • 215
    349
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
CP5014
4' Straight
  • L
  • OAH
  • 48" (1219 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 3600-3700
    5500-5700
  • Watts
  • 35
    56
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
CP5006
10' Arc
  • L
  • OAH
  • 92-1/8" (2340 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 7100-7300
    10800-11100
  • Watts
  • 68
    108
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
CP5004
8' Arc
  • L
  • OAH
  • 73-3/4" (1873 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 5600-5800
    8600-8900
  • Watts
  • 54
    88
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
CP5002
4' Arc
  • L
  • OAH
  • 68-1/4" (1734 mm)
  • 24" (610 mm)
  • CCT
  • 3000K
    3500K
    4000K
  • Lumens
  • 5600-5800
    8600-8900
  • Watts
  • 54
    88
  • Power
  • Integral
  • Control
  • 0-10V to 1%
  • Criterion
  • Damp
